APPLICTIONS:-

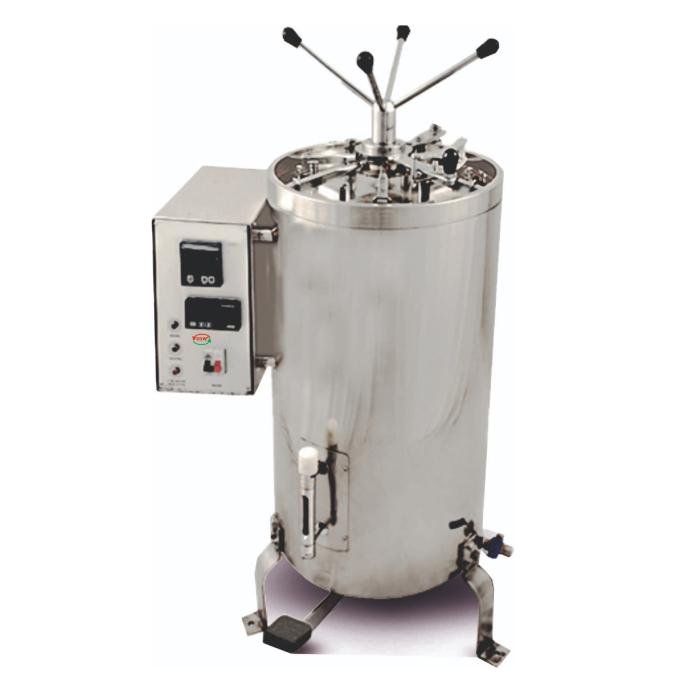

• “DSW” Semi-Automatic Digital Autoclaves are most ideal for critical applications requiring assured and reliable total destruction of all living micro-organisms.
• These are semi-automatic models requiring tighter control of temperature and sterilizing time, thus elimination any changes of under or over exposure of media/samples with respect to temperature and hold time.

Constructional & Salient Features:-

• Inner chamber, outer chamber and support ring are fully made of stainless steel (ss-304 grade).
• Heater cover stand and carrier/bucket are made of stainless steel.
• Lid made of thick machined stainless steel plate (ss-304).
• Radial locking lid ensures user safety and safe locking.
• Lid is fitted with Pressure Gauge, Spring Loaded Safety Valve, extra safety Valve, Manual Exhaust Valve, Vacuum Breaker-cum-Purge Valve as a safety device and water level indicator.
• Drain Valve facilitates easy cleaning of the chamber.
• Moulded joint less silicon rubber gasket.
• All internal joints are argon arc welded, ground and polished to give crevice free internals.

Control Panel and Switchgears:-

• Processor based Controller with time and temperature settable by user.
• LED Display with Temp. / Time
• Accuracy with +/- 0.1c,
• Resolution +/- 0.1c
• Operating range from 15 to 22 psi pressure (adjustable).
• Class ‘A] Platinum (pt-100) sensor,
• Low water level alarm and cut off for safety of heater
• End of cycle buzzer to alert the user.
• Miniature Circuit Breaker for MAINS on/off plus safety of control panel.
• Industrial grade energy efficient heaters reduce power bills drastically.
• Power Supply 220/230 Volt AC Single or 3 Phase( Depend upon the cap. Of Litters )
• Inner Size cap. 22,40,52,78,98,187Avialable
